Description
ROKEE Lighting provides Luminaires designed specifically for sports lighting, and is one of the professional sports lighting solutions providers for stadiums and training sports in China. Our Portable Stadium Lights use up to 85% less energy and last 125,000 hours.
DESIGN
- Heavy-duty ADC 12 die-cast aluminum housing with outdoor powder-coated + electrophoretic surface treatment to withstand harsh, extreme outdoor environments
- The total efficiency of the whole lamp is up to 95%, 170lm/w, we use less lights for the same lighting level.
- Powerful heat dissipation function, the back of the heat sink body is full of heat dissipation fins, the driver and the lamp body are separated to avoid heat accumulation.
- Clean and beautiful appearance design, the ultimate industrial aesthetics.
- SMD5050 and Samsung 3535 LED Chips from Lumileds.
- Conventional symmetry angle: 30°/60°/90
- Very narrow symmetry angle: 10°/15°
- Asymmetric angle: T2(117*34°)
- Professional non-glare, UGR less than 19
- RA70,RA80,RA90, high color rendering, can be used in TV HD broadcasting stadiums
- High-strength IK08 tempered glass, light transmittance greater than 95%.
ELECTRONICS
Input voltage: AC100-277V,50/60HZ
High input voltage: AC200-480V,50/60HZ
Driver Brand: INVENTRONICS EUM-240S670DG; EUM-240S670MG; EUM-680S840MG; EUD-600S740DT
PHILIPS Xitanium Dim 250W 0.7A 1-10V 230V Q | 929000838508
MEAN WELL HLG-240H-48A/B;XLG-240-H-A/AB; HLG-320H-54A/B; XLG-320-H-A/AB
Standard 10KV SPD lightning protection, 20KV available as an option.
Operating Temperature:-40℃~+50℃
Storage Temperature:-40°C~+80°C
CERTIFICATES
Rokee's Portable Stadium Lights have obtained ENEC, TUV-CB, CE, RoHS, ETL, SAA,LM79,LM80,ISTMT certificates issued by a third party authoritative laboratory (IS017025), which can better support your bidding projects and sales in the local market.
DIMMING SYSTEM
Wired dimming control: 0-10V Dimming, Dali, DMX512
Wireless dimming control: Zigbee
- Zigbee dimming system allows remote control of lights throughout the stadium from a computer or smartphone
- Wifi connection for data storage
- Supports timer, on/off, dimmer control, and detection of lamp operation.
- Controls individual sports floodlights or groups of them.
- Integrated automated lighting management
- Maximises energy savings
DRIVER REMOTE SPLIT INSTALLATION
- Reduce Wind Resistance (EPA value)
- Reduce Pole's Bearing
- Easy Installation,Simple Installation, Saving Time
- Convenient For Maintenance
- Easy Change Dali/Dimmable/Digital Driver
- Multiple High Mast Light Combined Unlimited Quantity
- Independent Assortment of lamp
- Custom Driver Cabinets Available
ACCESSORIES
①10KV/20KV SPD (Standard for 800W-1800W)
②1m Chain (Standard)
③Aiming Position Light
④Lighting cover
⑤Threaded pipe DC Power Cable Included
APPLICATION
Baseball Stadium Lighting,Basketball Court Lighting,Basketball Night Lighting,Bow Fishing Lighting,Fishing Lamp,Fishing Spot Lighting,Football Field Lighting,Football Night Lighting,Hockey Night Lighting,Led Baseball Field Lighting,Led Floodlights For Football Pitches,Led Football Stadium Lighting,Led Hockey Puck Lighting,Lighting For Soccer Field,Led Pickleball Lighting,Led Tennis Court Lighting,Led Tennis Lighting,Portable Football FloodLighting,Soccer Lighting,Soccer Night Lighting,Tennis Court Flood Lighting,Track Lighting

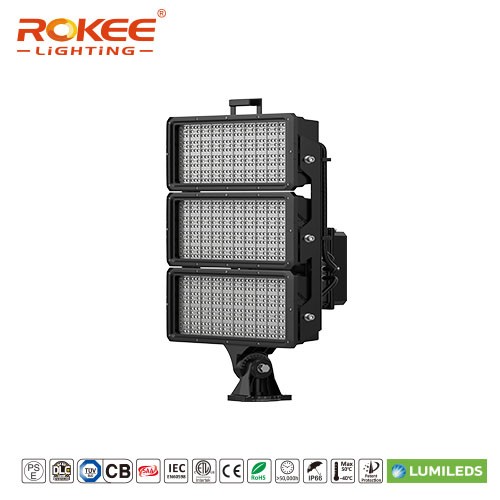

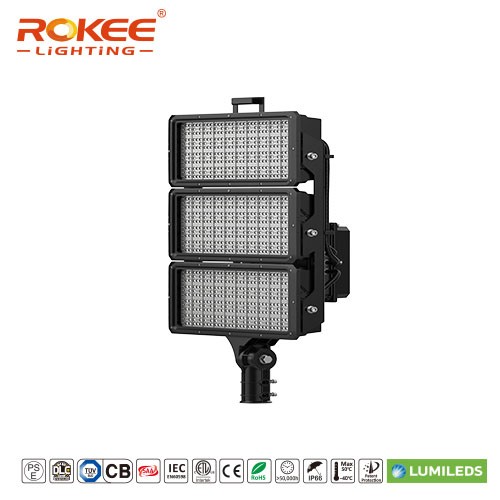

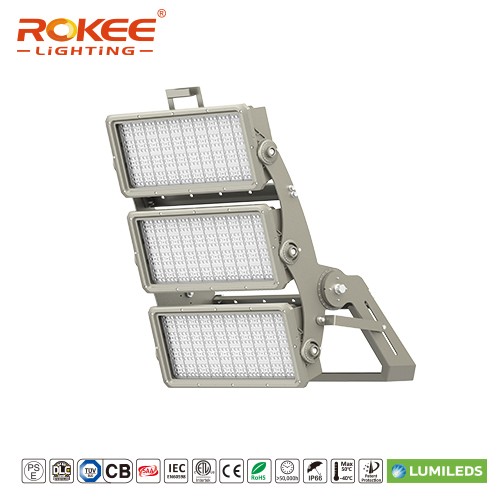

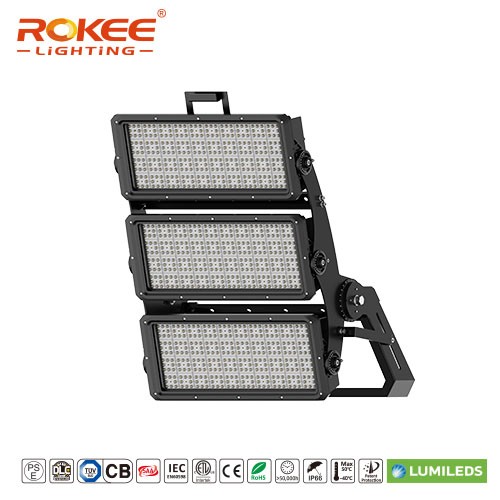

PRODUCT PICTURES
