Description

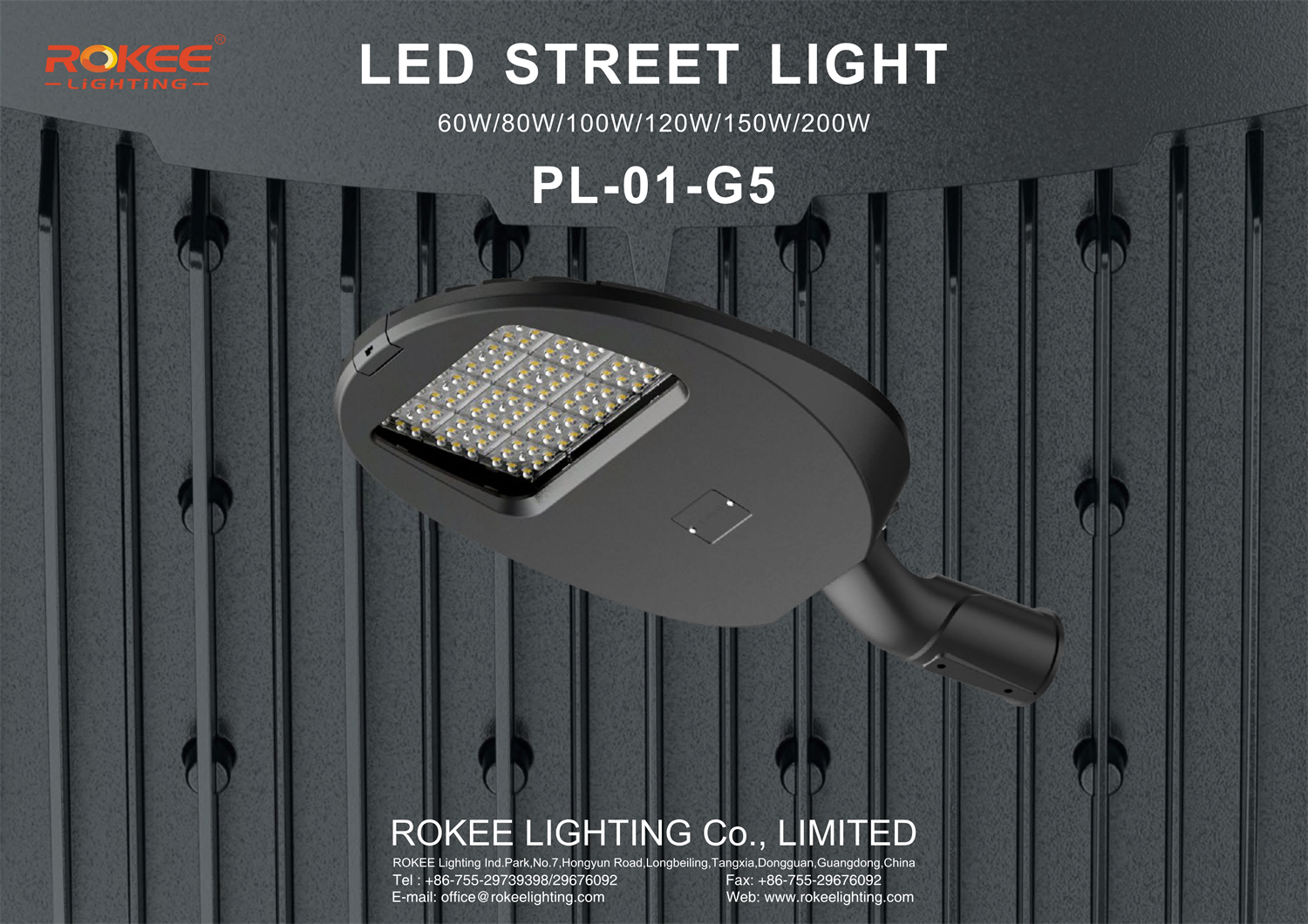

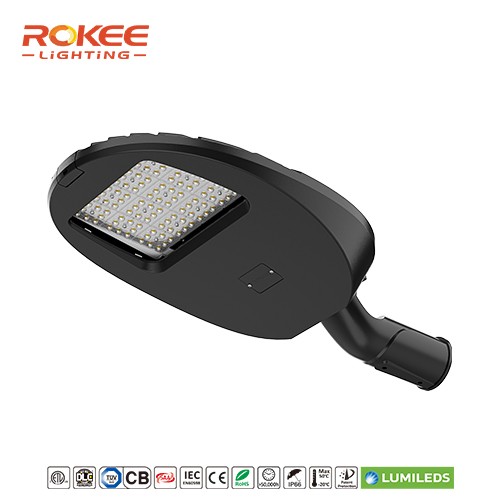

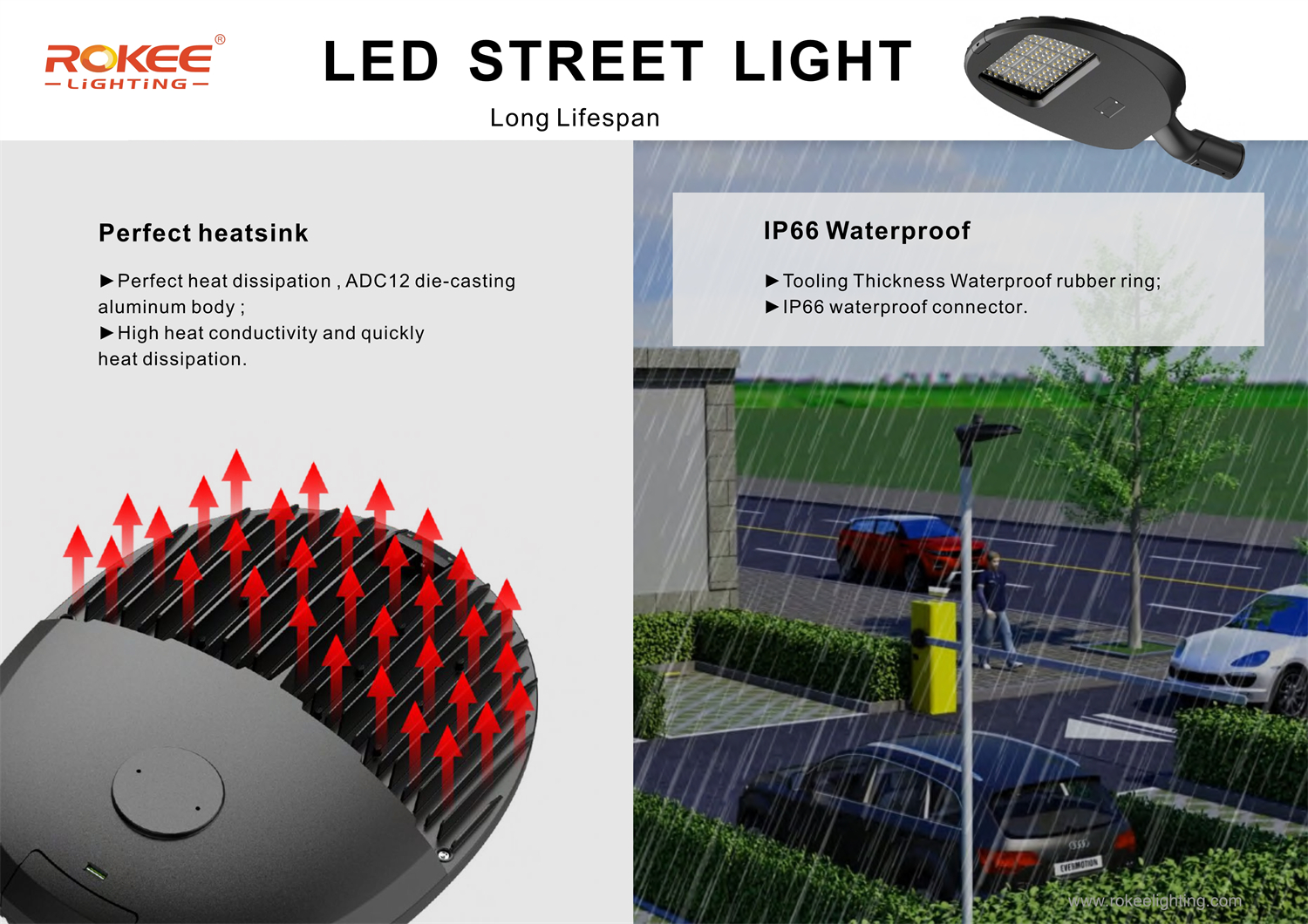

ROKEE's 5th generation LED street lights feature a heavy-duty die-cast aluminum housing, external heat sink and double waterproof rubber ring that opens at the top of the pole, designed to withstand all weather conditions and time.
Rokee Lighting is one of the leading manufacturers of modern street lights in China, offering a wide range of fixture designs designed for urban lighting. If you want to light up a street, local road, cycle path, alleyway, footpath, car park or square, we can help.
FEATURE

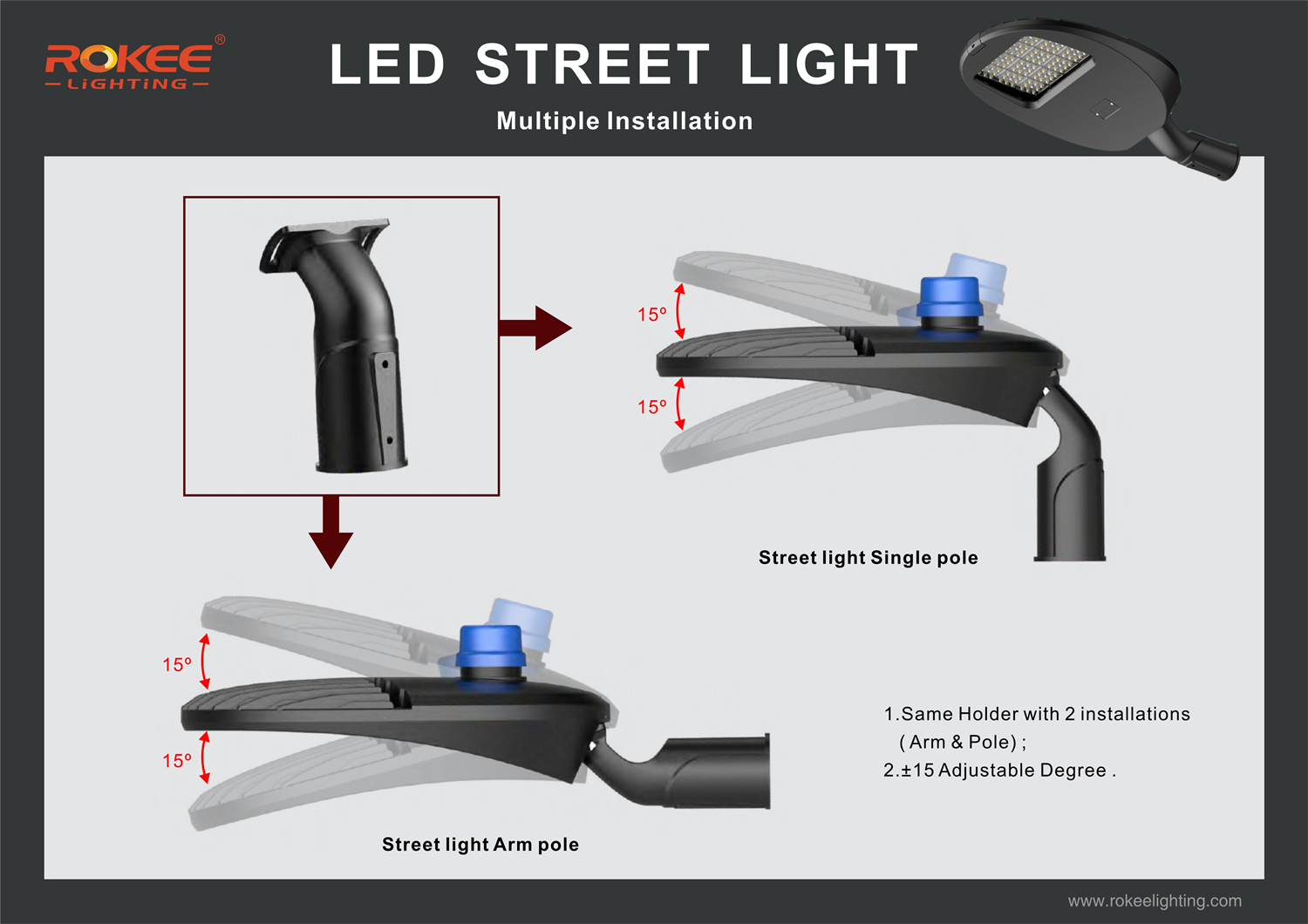

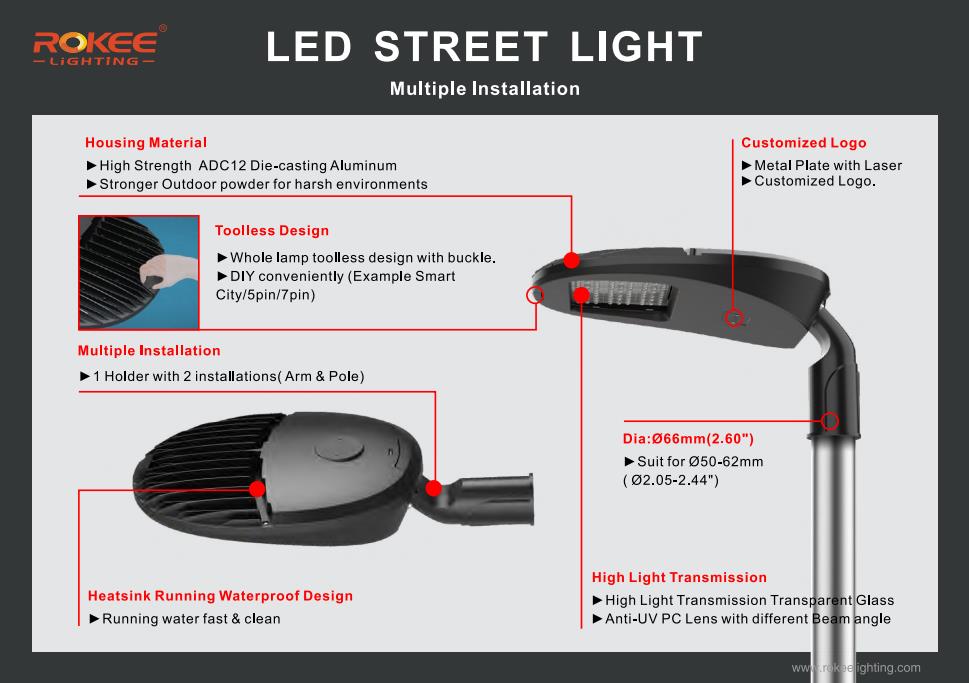

● 140Lm/w, 160Lm/w, One Bracket can Arm and Pole mounting.
● Self-clean Smooth body, 10KV /20KV SPD, Horizontal level, IP66.
● Dimming/ Daylight sensor/ Dali/ Zigbee/ RoLa Control optional.
● Class I and Class II protection class
● Timing model
SPECIFICATION
Power: 60W/80W/100W/120W/150W/200W
Driver Brand: MEAN WELL ELG-75-48A/B/DA, ELG-75-48A/B/DA, ELG-100-48A/B/DA, ELG-150-48A/B/DA, ELG-200-48A/B/DA, ELG-240-48A/B/DA
SOSEN SS-75VA-56/B, SS-100VA-56/B, SS-150VA-56/B, SS-200VA-56/B
PHILIPS CLASSI Xitanium Dim 250W 0.7A 1-10V 230V Q | 929000838508
CLASSII Xi FP75W 0.3-1.0A SNLDAE 230V C133 Sxt ; Xi FP75W 0.3-1.0A SNLDAE 230V C133 Sxt; Xi FP150W 0.3-1.0A SNLDAE 230V S240 Sxt
Input voltage: 100-277VAC
Lumens: 140Lm/W(Standard), 160Lm/W optional
CRI: >80(>90 optional)

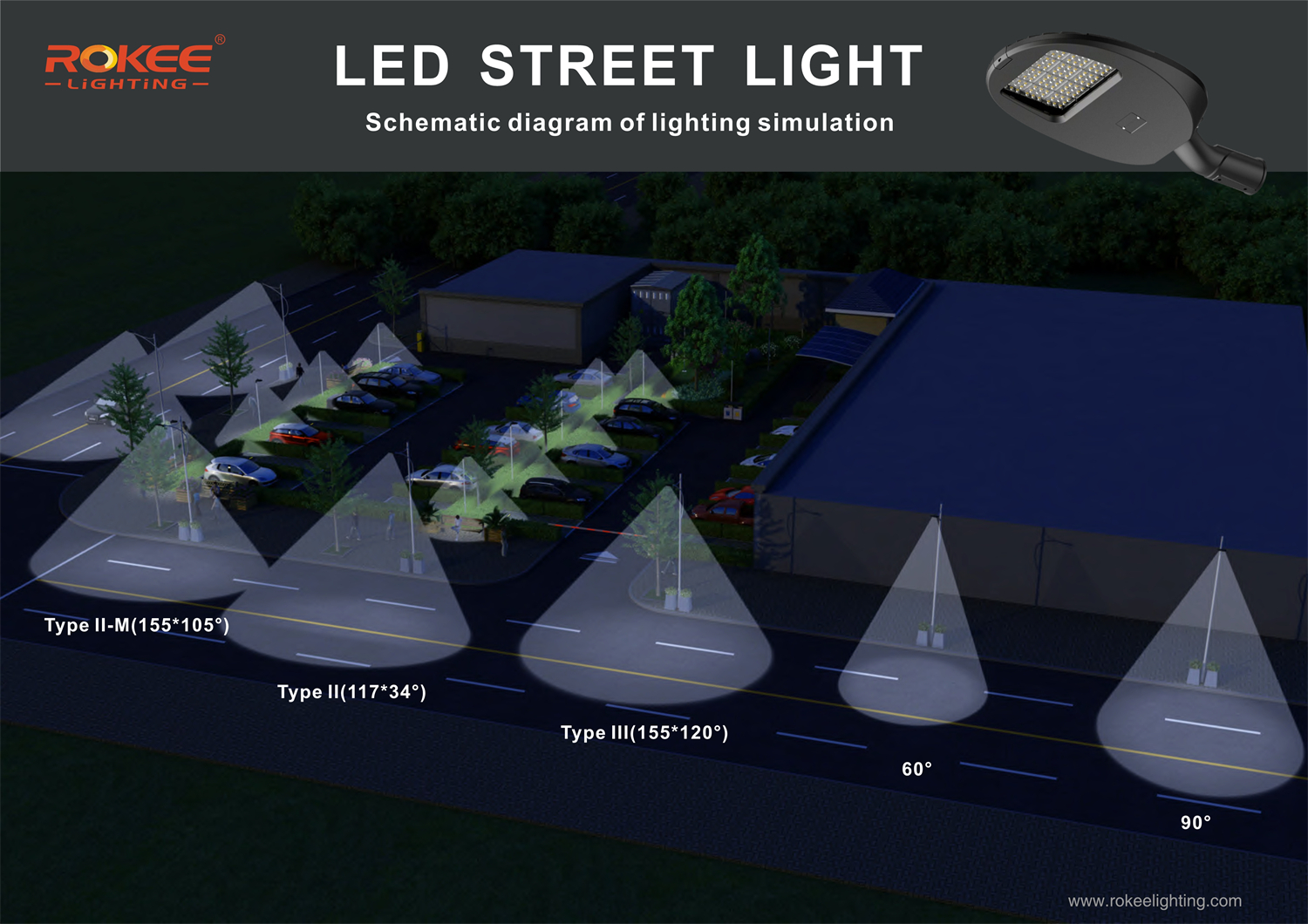

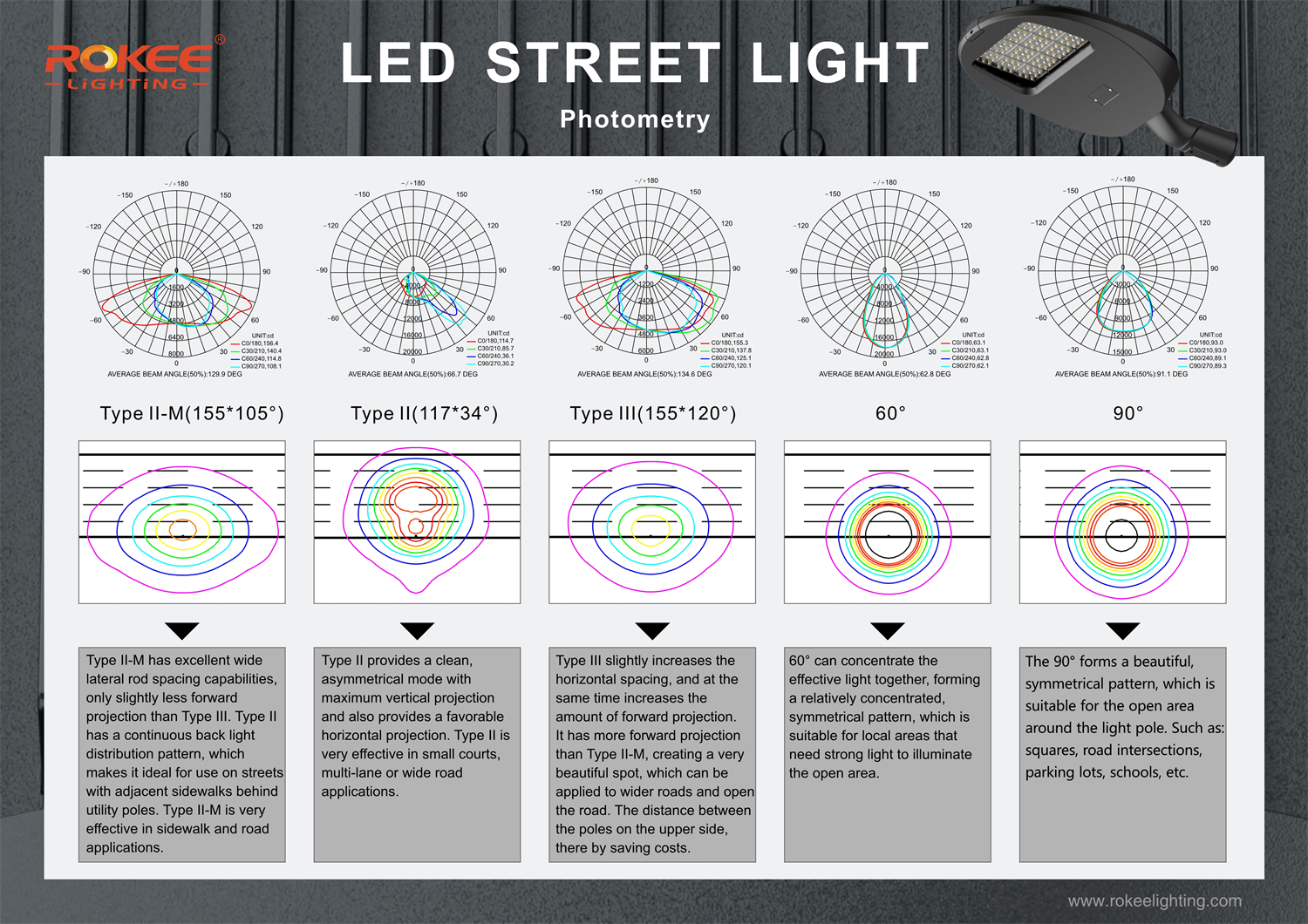

Beam Angle: Type II/ Type II-M/ Type III
Waterproof: IP66
Life Span:>50,000Hours
Warranty: 5 Years
Operating Temperature:-40℃~+50℃
Storage Temperature:-40℃~+80℃
Optional: 0-10V Dimming, Dali, Zigbee
Certificate:
EN IEC 55015:2019+A11:2020
EN IEC 61000-3-2:2019+A1:2021
EN 61000-3-3:2013+A1:2019+A2:2021
EN 61547:2009
IEC 60598-2-22
CISPR 16-4-2
IEC 60598-2-3
EN IEC 60598-2-1:2021
EN IEC 60598-1:2021
EN 62493:2015
EN IEC 62031:2020
IEC/EN IEC 62031
IEC TR 62778
IEC 60065

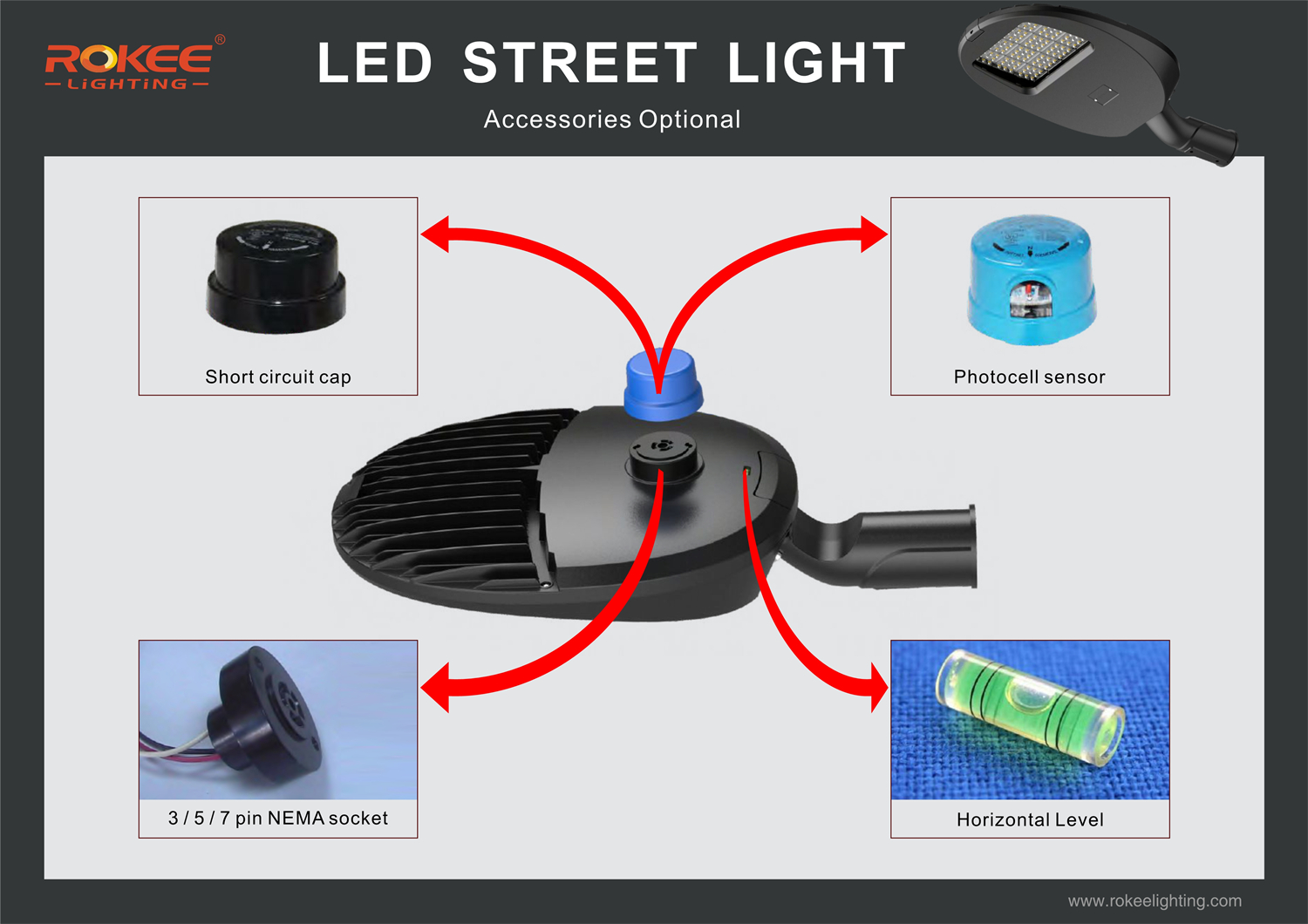

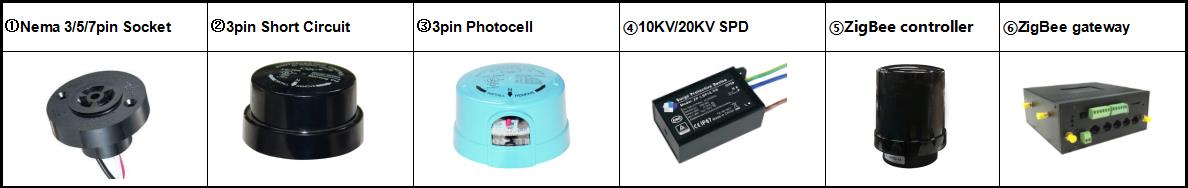

①Nema 3/5/7pin Socket
②Short Circuit
③Photocell Sensor
④SPD 10KV/20KV
⑤Zigbee smart cap
⑥ Zigbee gateway
APPLICATION

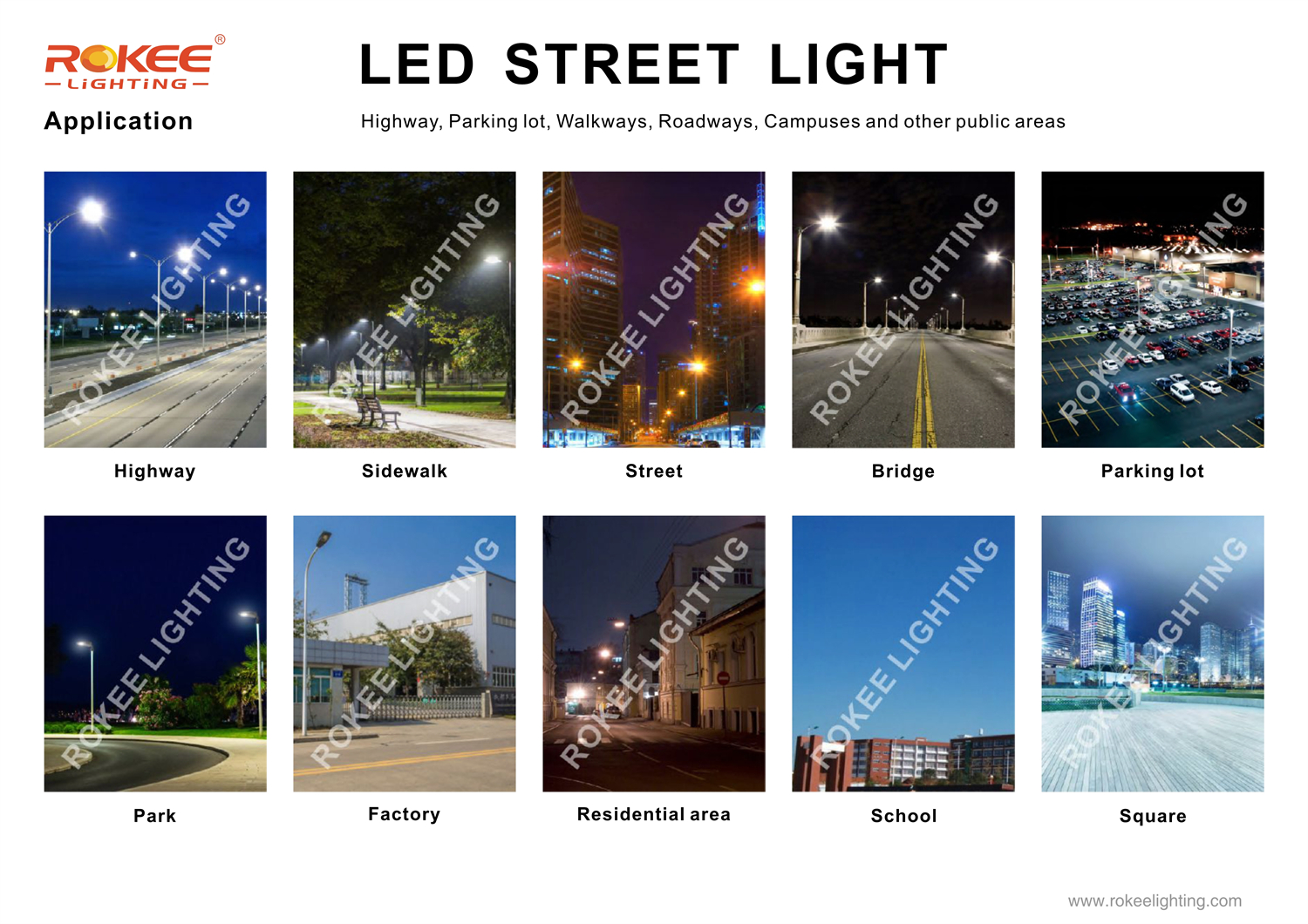

LED street light widely used in Street road lighing,Highway,Pathway,Parking lot,Schools,Residential area,Villas,Resorts,Garden,Tunnel light and other exterior landscape lighting.
ROKEE Lighting's LED STREET LIGHT has passed the international quality certificates,including ETL,TUV-CB,CE,SAA,ROHS,IP66.Many of our street road lighting projects have gained good reputation from our oversea customers.Our LED street lighting fixture have been exported to Europe,America,Australia and Africa over 80 countries.
We have skilled engineers to answer all your questions and enquiries and provide all-round solutions based on your outdoor field lighting projects and provide technical training.
We do everything we can do to support the policy-Green and energy saving.With the support of government and trust of customers,supplying you good quality products at competitive price,stable and strong package,fast delivery time and timely after-sales service are our total tenets.
Inquiry us: rokee@rokeelighting.net
