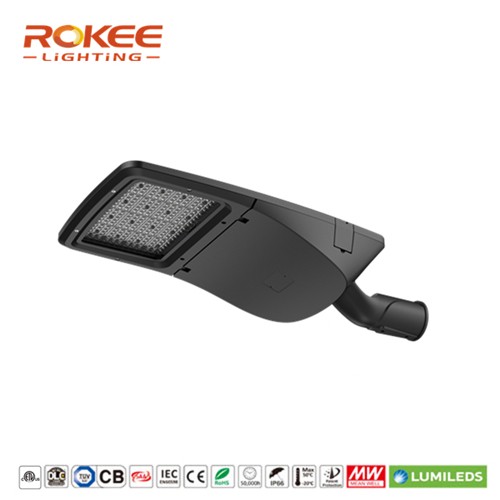

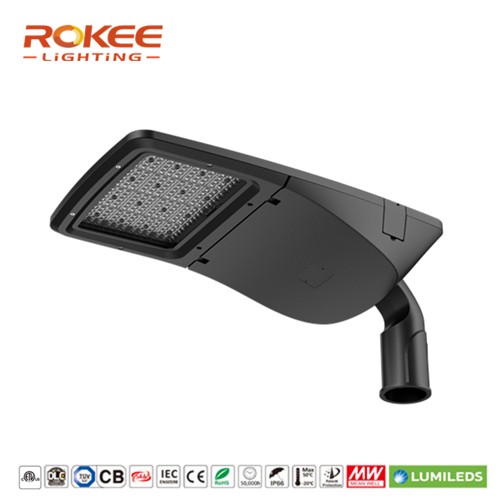

G3 series-100W LED Street Light/Parking Lot Light

Product Item：RK-PL100W-01(ID:G3)

Power: 100W

Color Temperature:2700K/3000K/4000K/5700K

Lumen: 140Lm/W(150Lm/W optional)

Beam Angle:Type II-S/Type II-M/Type III-M/Type IV-M/Type V

Category：01 G3 series

Description

The ROKEE Smooth LED street light features a die-cast aluminum housing with the driver and luminous body in separate spaces to avoid heat buildup, a safety clasp design on both sides that can be opened at the top of the pole for maintenance without tools, IP66 outdoor waterproof rating, suitable for poles with a diameter of 50-60mm.
When you need bright street, road and parking lot lighting, our 240W LED street light can provide you with 33,600 lumens of light and can also be equipped with a photocell sensor for dusk to dawn lighting control.

FEATURES:

Soft light with high light effect.
Cold lighting source,no heat radiation,no harmful metal mercury,and environmental protection.
Low power consumption,long lifespan,good stability,high reliability.
Compared with the filament lamp of the same light effect,80% reduction in energy consumption.
Novel design,elegant and beautiful,with modern lighting features,easy to install and adjust.

SPECIFICATION:

Watts: 100W
Replaces Watts: 200W-300W
LED Brand: MeanWell/INVENTRONICS/Sosen
LED Chips: LUMILEDS
Input Voltage: 100-277 VAC
Light Output: 14,000 lumens
Luminous Efficacy (lm/W): 140 lm/W
Average Life: 50,000 hours
Color Temperature(s):2700K/3000K/4000K/5000K/5700K
CRI(RA): >80
Beam Angle:
Type II-S(151*81°)
Type II-M(147*72°)
Type III-M(156*71°)
Type IV-M(100*65°)
Type V(150°)
Pole Diameter: 50-60mm
Installation: Horizontal or Vertical pole arms.
Waterproof Rating: IP66
Operating Temperature : -40°C ~ +50°C
Housing Material: Alluminum alloy
Lens : Polycarbonate
Housing Color : Black/Gray
Dimensions: 698(L) x 327(W) x 144(H)mm
Weight : 8.9kgs/19.6 lbs.
Certification: CE,ROHS,ETL,SAA,LM79,ISTMT
Warranty: 5 Years

ROKEE Code	Power	Lumen	CCT	CRI	Beam Angle
RK-PL30W-01(ID:G3)	30W	140Lm/W	5700K	>80	Type II-S/Type II-M/Type III-M/Type IV-M/Type V
RK-PL60W-01(ID:G3)	60W	140Lm/W	5700K	>80	Type II-S/Type II-M/Type III-M/Type IV-M/Type V
RK-PL80W-01(ID:G3)	80W	140Lm/W	5700K	>80	Type II-S/Type II-M/Type III-M/Type IV-M/Type V
RK-PL100W-01(ID:G3)	100W	140Lm/W	5700K	>80	Type II-S/Type II-M/Type III-M/Type IV-M/Type V
RK-PL120W-01(ID:G3)	120W	140Lm/W	5700K	>80	Type II-S/Type II-M/Type III-M/Type IV-M/Type V
RK-PL150W-01(ID:G3)	150W	140Lm/W	5700K	>80	Type II-S/Type II-M/Type III-M/Type IV-M/Type V
RK-PL180W-01(ID:G3)	180W	140Lm/W	5700K	>80	Type II-S/Type II-M/Type III-M/Type IV-M/Type V
RK-PL200W-01(ID:G3)	200W	140Lm/W	5700K	>80	Type II-S/Type II-M/Type III-M/Type IV-M/Type V
RK-PL240W-01(ID:G3)	240W	140Lm/W	5700K	>80	Type II-S/Type II-M/Type III-M/Type IV-M/Type V

PRODUCT VIDEO

https://youtu.be/ec1LFccnkDM

CUSTOMIZED SHELL COLOR:
RAL9005
RAL7035
RAL7030
RAL9007
RAL7022
RAL8019
RAL9003
ACCESSORIES
①Nema 3/5/7pin Socket
②Short Circuit
③Photocell Sensor
④SPD 10KV/20KV
⑤Zigbee smart cap
⑥Zigbee gateway

IOT LED STREET LIGHT SYSTEM

The Internet of Things (IoT) LED streetlight system is the most anticipated smart lighting solution on the market today and is revolutionising the way we light our streets. The system utilises smart sensors and wireless communications to control and monitor street lights, making them more energy efficient and cost effective.
One of the key benefits of the ROKEE IoT LED streetlight system is the ability to adjust the brightness of the lights based on real-time data. For example, the system can dim the lights during off-peak hours to save energy and increase brightness in high-traffic areas to enhance safety.
In addition, the ROKEE IoT LED street light system allows for remote monitoring and maintenance, reducing the need for manual inspections and repairs. This not only saves time and resources, but also ensures that the lights are always in top condition.

Four functions:
1. Energy saving control
2. Energy saving statistics
3. Fault alarm
4. Equipment management
Features:
1. Wireless intelligent switch - through the app and webpage control street lamp switch, brightness
2. Industry standard NEMA interface, global standard
3. Wireless long-distance data transmission without on-site wiring.

APPLICATION

Tunnel light, Sports field, Parking lot, Garden, Residential area,Landscape, Architectural decorative lighting, Roads and other places.

PRODUCTION AGING PICTURERS

ROKEE Lighting's LED STREET LIGHT has passed the international quality certificates,including DLC,ETL,TUV-CB,CE,SAA,C-TICK,ERP,ROHS,IPART,VEET,IP66,IK8.Many of our LED Street Lighting projects have gained good reputation from our oversea customers.Our LED Street Lighting Fixture have been exported to Europe,America,Australia and Africa over 80 countries.

We have skilled engineers to answer all your questions and enquiries and provide all-round solutions based on your outdoor sports field lighting projects and provide technical training.

We do everything we can do to support the policy-Green and energy saving.With the support of government and trust of customers,supplying you good quality products at competitive price,stable and strong package,fast delivery time and timely after-sales service are our total tenets.
