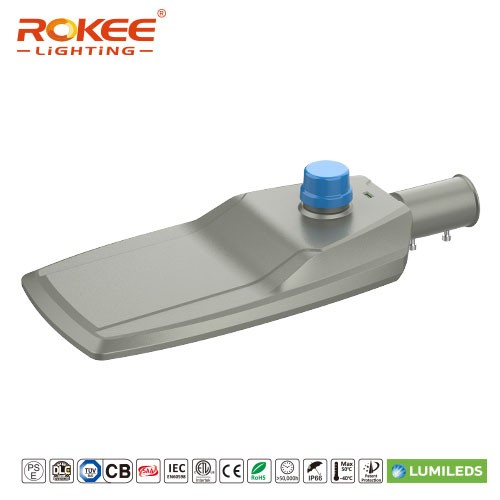

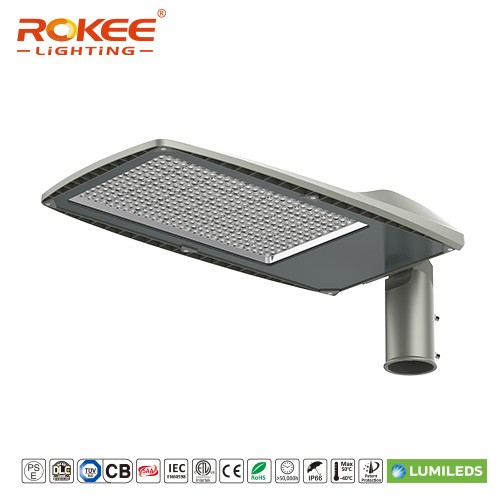

190lm/W 240W Smart City Light/Street Light-Parking Lot Light 190lm/W 240W Smart City Light/Street Light-Parking Lot Light

190lm/W 240W Smart City Light/Street Light-Parking Lot Light

  • Product Item:RK-PL-01-G7
  • Power:30W/50W/60W/80W/100W/120W/150W/200W/240W
  • Color Temperature:2700K/3000K/4000K/5700K/6500K
  • Beam Angle:Type II-S/Type II-M/Type III-M/Type IV-M/Type V
  • CLASS I/CLASS II,IP66,>50,000hrs
  • Category:01 G7 series
  • 140lm/w , 160lm/w , 190lm/w , CE , ROHS certified
    Inquiry Send Email

    Description

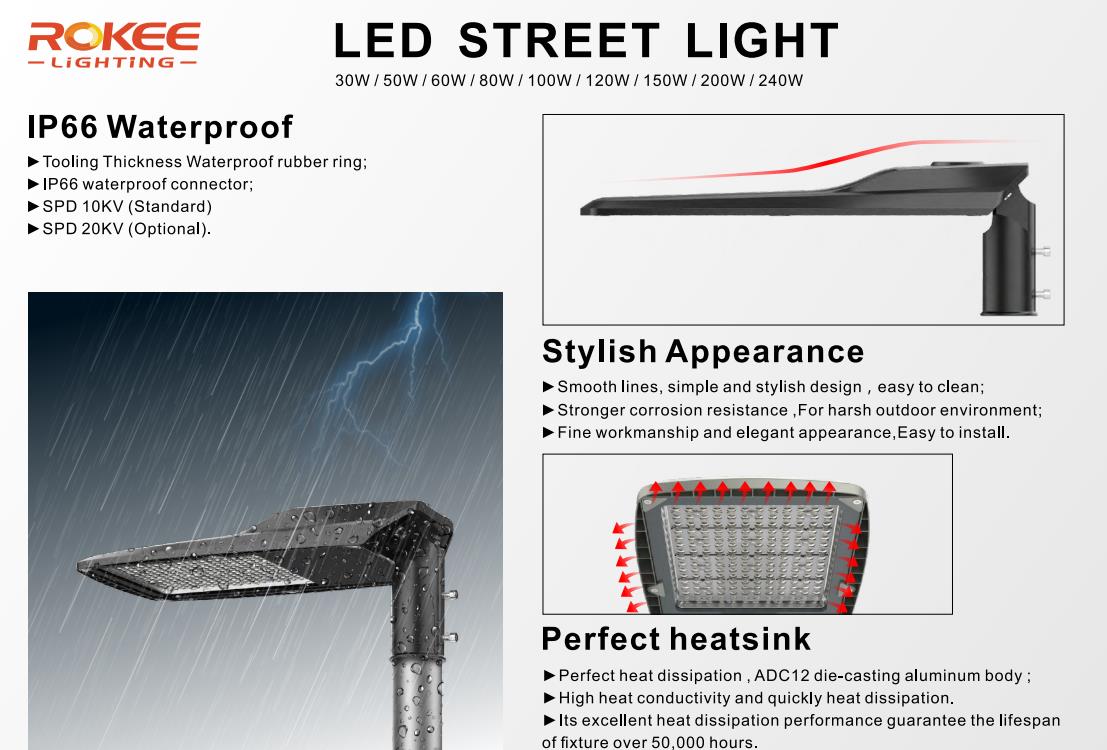

    The latest generation of LED Street Lights are designed to withstand a wide range of weather conditions and time with a smooth heavy-duty die-cast aluminium housing, built-in cooling fins and a double waterproof rubber ring design.

    Rokee Lighting is one of the leading manufacturers of modern street lights in China, offering a wide range of fixture designs designed for urban lighting. If you want to light up a street, local road, cycle path, alleyway, footpath, car park or square, we can help.

    FEATURE

    ●  140Lm/w, 160Lm/w,190Lm/w, One Bracket can Arm and Pole mounting.
    ●  Self-clean Smooth body, 10KV /20KV SPD, Horizontal level, IP66.
    ●  Dimming/ Daylight sensor/ Dali/ Zigbee/ RoLa Control optional.
    ● Class I and Class II protection class
    ● Timing model

    SPECIFICATION

    Power: 30W/50W/60W/80W/100W/120W/150W/200W/240W

    Driver Brand: MEAN WELL XLG-50-A/AB, XLG-50-A/AB, XLG-75-H-A/AB, XLG-100-H-A/AB, XLG-150-H-A/AB, XLG-240-H-A/AB

    INVENTRONICS EUM-030S105DG, EUM-050S150DG, EUM-075S210DG/MG, EUM-100S280DG/MG, EUM-150S420DG, EUM-200S560DG, EUM-240S670DG
    SOSEN SS-30VA-56/B,SS-50VA-56/B, SS-75VH-56B, SS-100VH-56B, SS-120NL-130, SS-150NL-260/B,SS-150VH-E56B, SS-200NL-260,SS-200VH-E56B, SS-240NL-260, SS-240VH-E56B

    Input voltage: 100-277VAC

    Lumens: 140Lm/W(Standard), 160Lm/W&190Lm/W optional

    CRI: >80(>90 optional)

    Beam Angle: Type II-S/ Type II-M/ Type III-M/ Type IV-M/ Type V

    Waterproof: IP66

    Life Span:>50,000Hours

    Warranty: 5 Years

    Operating Temperature:-40℃~+50℃

    Storage Temperature:-40℃~+80℃

    Optional: 0-10V Dimming, Dali, Zigbee

    Certificate Standard:
    EN IEC 55015:2019+A11:2020
    EN IEC 61000-3-2:2019+A1:2021
    EN 61000-3-3:2013+A1:2019+A2:2021
    EN 61547:2009
    IEC 60598-2-22
    CISPR 16-4-2
    IEC 60598-2-3
    EN IEC 60598-2-1:2021
    EN IEC 60598-1:2021
    EN 62493:2015
    EN IEC 62031:2020
    IEC/EN IEC 62031
    IEC TR 62778
    IEC 60065

    IES FILES

    Welcome to contact us for IES optical documents, supporting IES, LDT, and PDF formats.

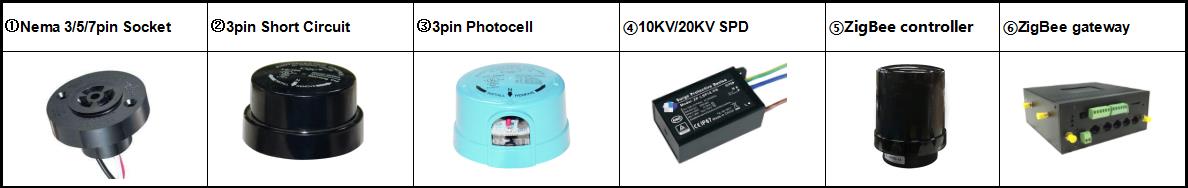

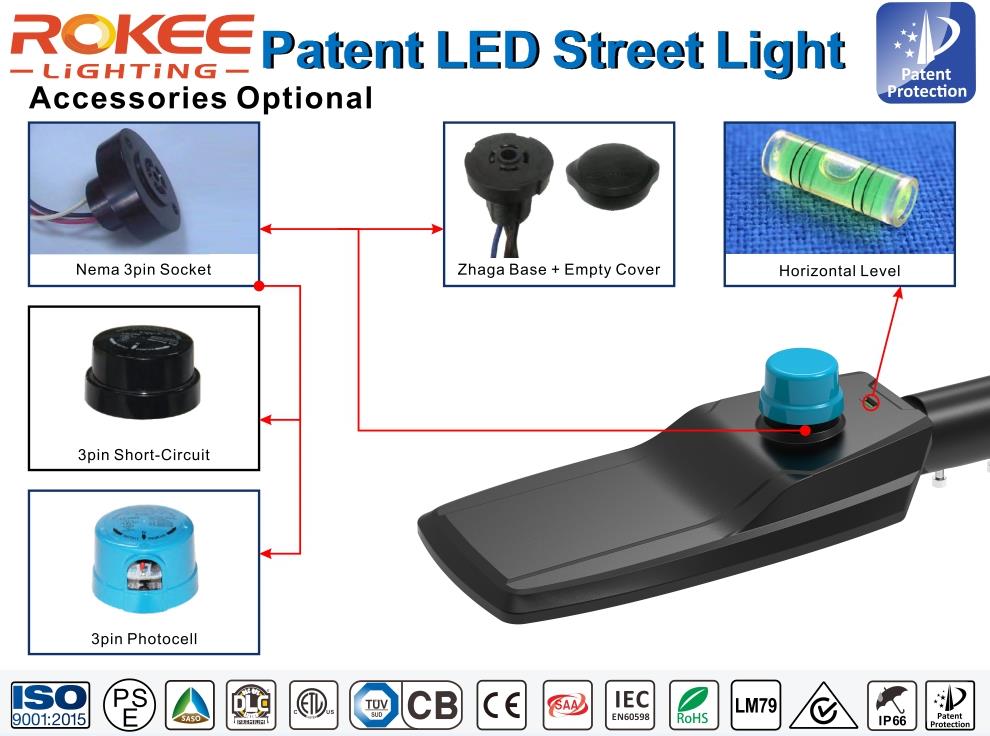

    ACCESSORIES
    ①Nema 3/5/7pin Socket
    ②Short Circuit
    ③Photocell Sensor
    ④SPD 10KV/20KV
    ⑤Zigbee smart cap
    ⑥ Zigbee gateway


    PRODUCT VIDEO

    https://youtu.be/IimZ4z1jUow

    APPLICATION
    LED Street light widely used in Street road lighting, Highway,Pathway,Parking lot, Schools, Residential area, Villas, Resorts,Garden, Tunnel light and other exterior Landscape lighting.

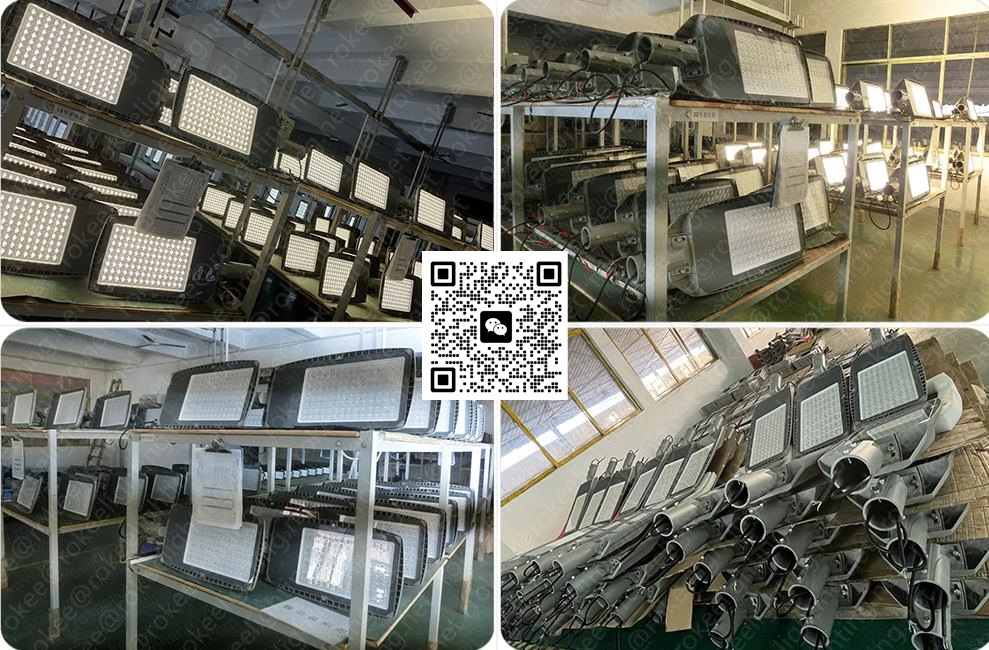

    PRODUCE PICTURES
