Description

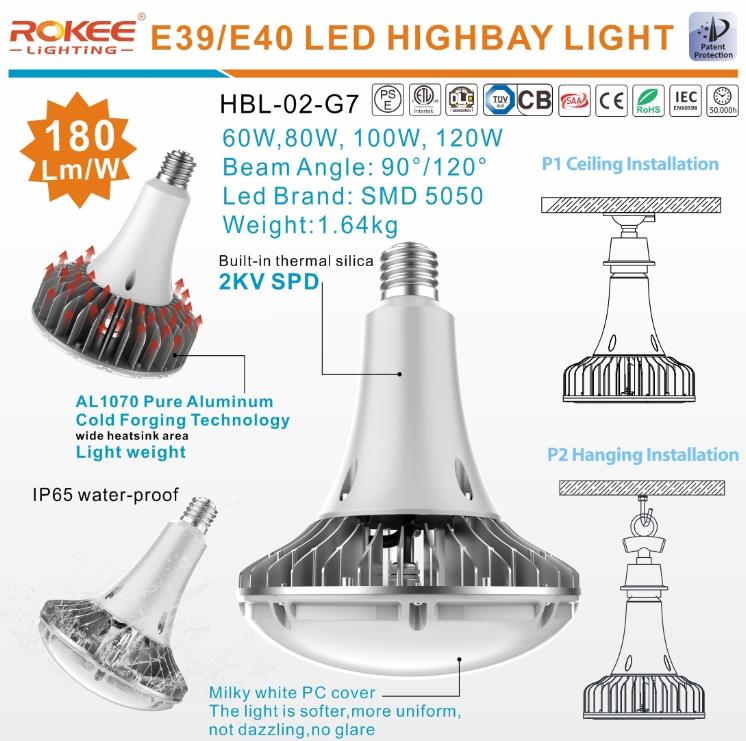

This lightweight E39/E40 UFO High Bay light , using the cold forging process, AL1070 pure aluminum housing, the whole light is only 1.64kg, but the high brightness SMD5050 LED chip, so that the whole light lumen output can reach 180lm/w, E39/E40 threaded connector can be a direct replacement of traditional bulbs, is the ideal choice for factories, supermarkets, production line lighting.
FEATURES
1. New patent desin E40/39 led high bay,180Lm/w,60W-120W, 2KV SPD protection.
3. High quality UL/SAA/CE driver + High brightness 5050 from Lumileds OEM factory.
4. AL1070 Pure Aluminum cold forging housing, lighter weight, better heat-sink,IK10.
5. UGR less than 19, IP65, 3 years warranty, DLC/ETL / SAA /TUV-CE/CB/GS / RoHS.
6. 90° /120° Lens, More Function: Dimmable / Microwave Motion Sensor available.
PRODUCT DETAILS
1.Appearance
The appearance adopts cold forging integrated molding process,which makes the product more interesting, aesthetic and full of highlights and industrial sense.

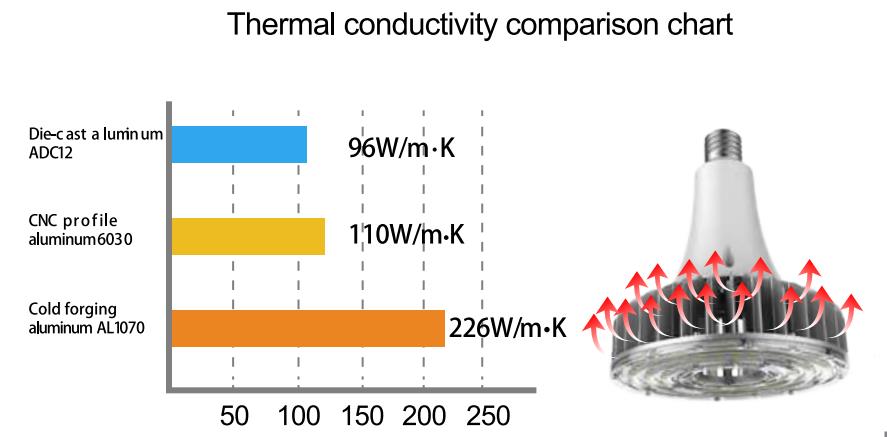

2. Heatsink
Heatsink Body adopts pure aluminum -cold forging technology,which has strong thermal conductivity, large heatsink area, good heat dissipation performance and especially weight is lighter.
3.Power supply
Independent modular design for power supply,including SPD 2KV. Built-in thermal paste to ensure a better heat dissipation and waterproof. Besides,the PC driver cover can anti-high temperature, anti-deformation,and does not change color for a long time, easy cleaning.
4.PC LENS
Use Optical PC lens,low temperature, light transmittance up to 95%.
HBL-02-G7-There is a hole in the middle of lens, which increased air conviction and has a better heat dissipation to maintain a low temp on chip and driver.
HBL-02-G7(B)-Unique optical design, High uniform light distribution, No frequency, Anti-glare.
5.Waterproof
Adopts silicon rubber ring on lens, perfect IP65 waterproof.
6.LED
High brightness SMD5050 chip,180lm/W,50000hrs lifespan.

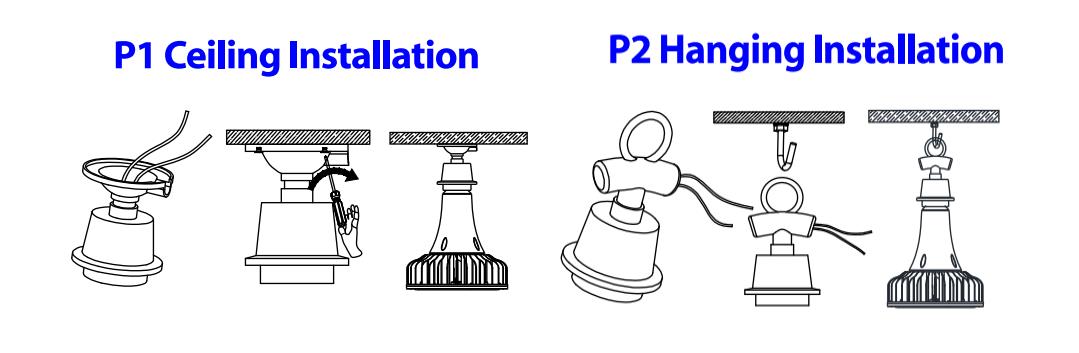

7.Installation
Use international standard E39/E40 base,wide application, durable,which can be ceiling/hanging installation.

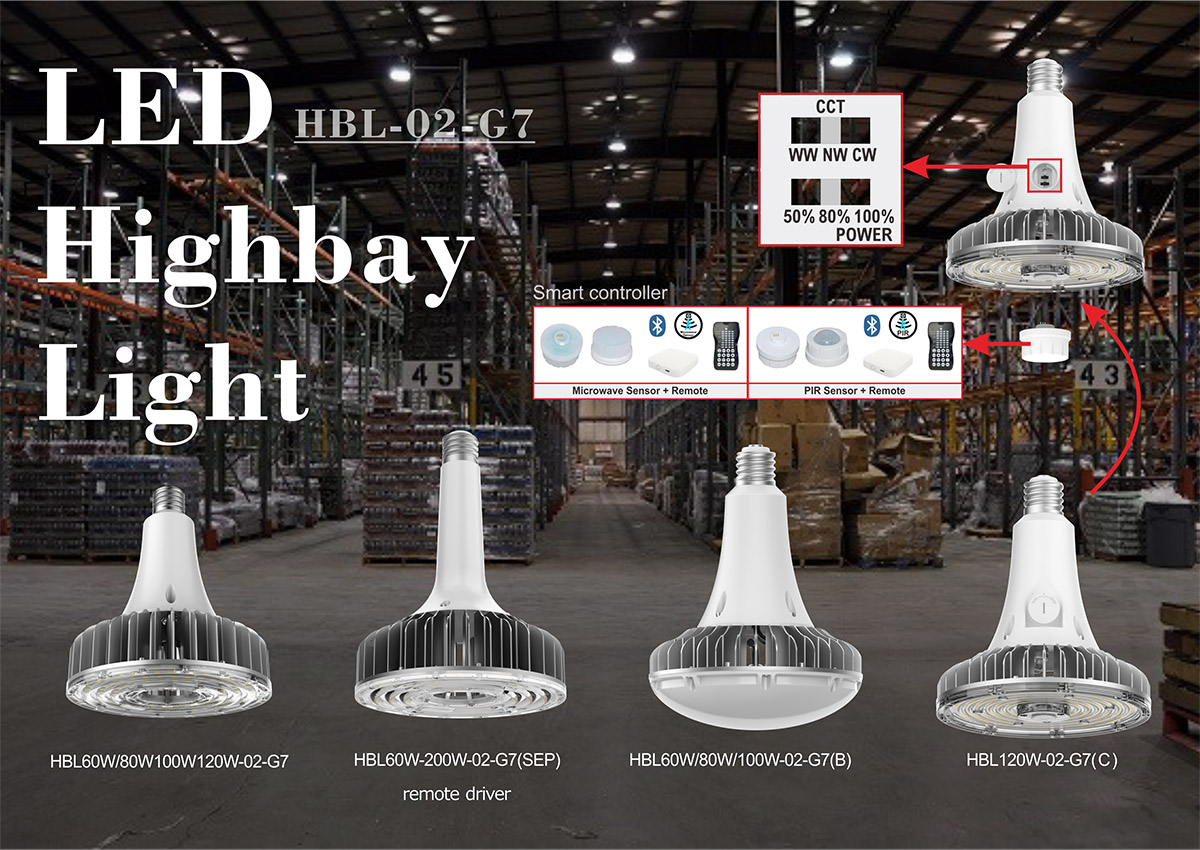

NEW FEATURES
1: Driver remote mounting, up to 200W.
2: Add foggy cover to reduce glare.
3: Add CCT and Power adjustable switch.
4: PIR/Microwave sensor can be added in the center.
PRODUCT VIDEO
APPLICATION

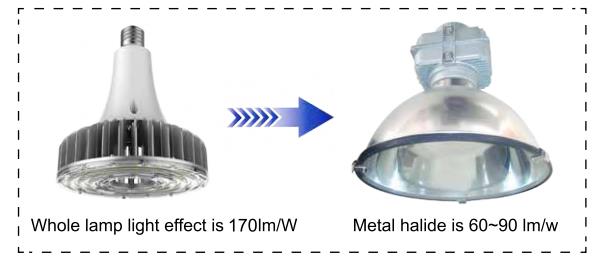

60W replace 180W metal halide
80W replace 250W metal halide
100W replace 300W metal halide
120W replace 350W metal halide
Workshops & Sport Facilities, Storage Facilities & Warehouses, Supermarkets & Department Stores, Showrooms, Design Centers & Galleries, Shopping Center, Airport Center.

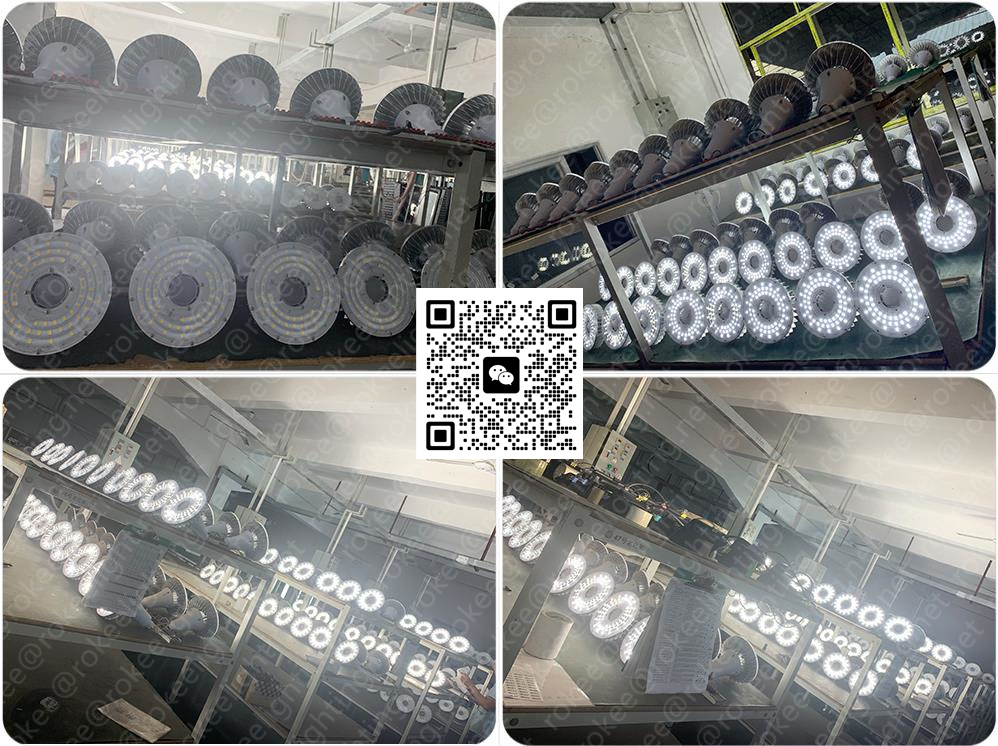

PRODUCTION PICTURE
